Oval gear flowmeter working principle
sales01@cxflowmeter.com
Positive displacement flow meter, also known as fixed displacement flowmeter, referred to as PD flowmeter (positive displacement meter), is the most accurate type of flow meter.
It is a type with high precision in the flow meter, especially suitable for the measurement of the flow rate of high viscosity medium.
Positive displacement flow meter, also known as fixed displacement flowmeter, referred to as PD flowmeter (positive displacement meter), is the most accurate type of flow meter.
It is a type with high precision in the flow meter, especially suitable for the measurement of the flow rate of high viscosity medium.
The oval gear flowmeter uses a mechanical measuring element to continuously divide the fluid into a single known volume part, and measures the total volume of the fluid according
to the number of times the metering chamber is filled and discharged successively and repeatedly.
to the number of times the metering chamber is filled and discharged successively and repeatedly.
It is especially suitable for flow measurement of heavy oil, polyvinyl alcohol, resin and other media with high viscosity.
Oval gear flow meter (also known as displacement flowmeter, gear flowmeter) is a kind of positive displacement flowmeter, and it is a kind of high precision flow meter.
Accuracy: 0.5%
The measuring part of the oval gear flowmeter is mainly composed of two intermeshing oval gears and their housing (measurement chamber)

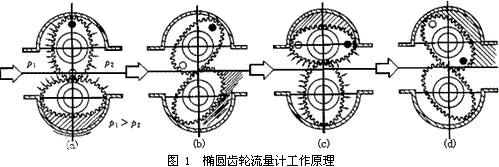

Oval gear flowmeter working principle diagram
The metering chamber is filled successively and repeatedly Discharge amount + discharge times to measure the total amount of fluid volume
(The volume of displacement flowmeter displacement is also equal to mass)
Classification of positive displacement flowmeter
Volumetric flowmeters are classified according to their measuring elements and can be divided into
Oval Gear Flow Meter
Scraper flowmeter
Dual Rotameter
Rotary Piston Flow Meter
Reciprocating piston flow meter
Disc flow meter
Liquid-sealed rotary drum flowmeter
Wet gas meters and membrane gas meters, etc.
If you want to know more about different flowmeters, don’t know how to buy a suitable flowmeter and quote,
welcome to consult CIXIFM winny: sales01@cxflowmeter.com
welcome to consult CIXIFM winny: sales01@cxflowmeter.com
