Phosphoric acid pump
Email:sales01@cxflowmeter.com
whatsapp:008618049841995
Today, we received a request from a customer for two phosphoric acid chemical metering pumps. The following is the specific information he provided
Medium 1: Phosphoric acid
Viscosity 500-1000cp
Flow rate 5-120ml/min
Temperature 80-120 degrees
Pressure: 1 kg
Need insulation
On-site material 2205
No explosion-proof required
Medium 2: Tributyl phosphate pump Flow rate 30-150 ml per minute, viscosity within 500cp, temperature 80-120 degrees, seals must be PTFE, TBP corrosion rubber
After analysis by our technicians, we recommended the following two chemical dosing pumps for him

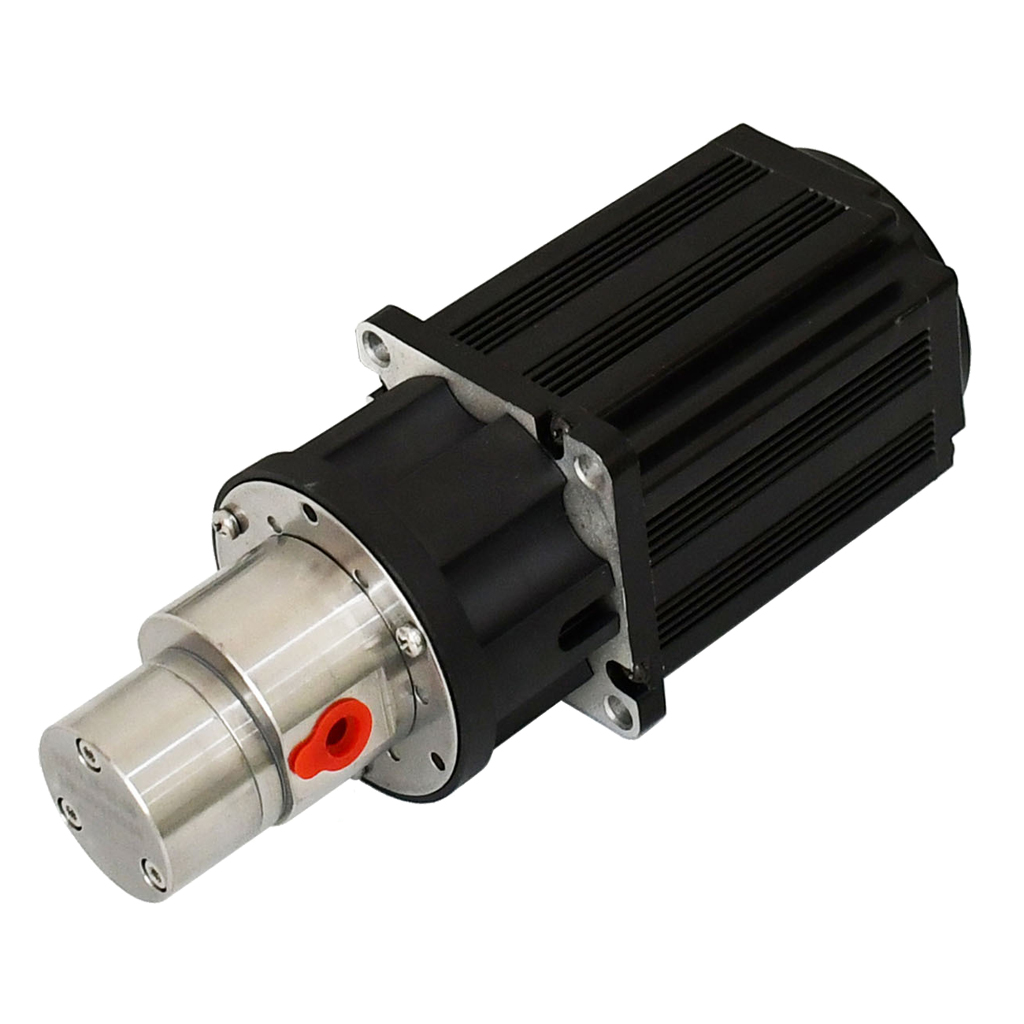

CXHDL-0.8/0.8CC/caliber G1/2/pump body 2205/gear 2507/bearing silicon carbide/seal ring fluororubber/alloy type mechanical seal/0.4KW servo motor/1:5 planetary reduction ratio/base Q235/220V electric heating rod, PT100 temperature Sensor, heating power 400W/Accessories: coupling, protective cover, inlet and outlet joints
CXHDL-0.8/0.8CC/caliber G1/2/pump body 304/gear 440C/bearing silicon carbide/sealing ring PTFE/alloy type mechanical seal/0.4KW servo motor/1:5 planetary reduction ratio/base Q235/220V electric heating rod, PT100 temperature sensor, heating power 400W/accessories: coupling, protective cover, inlet and outlet joints
If you also have the demand for precision industrial Phosphoric acid pump, but don't know how to choose the dosing pump, please consult CIXIFM winny:
