Type：CX-FLM-FYKS cable float level switch
Illustrate：CX-FLM-FYKS Cable float level switch adopt micro-switch ,reed switch , mercury switch as the contact parts . When the cable float have a certain angle with the hammer ...
CX-FLM-FYKS Cable float level switch
CX-FLM-FYKS Cable float level switch adopt micro-switch ,reed switch ,
mercury switch as the contact parts . When the cable float have a certain angle with the hammer
(Normally the angle is 28°±2 for reed switch or micro-movement switch ,the angle is 10°±2°for mercury switch）,
then the switch will have the ON or OFF output signal .。
CX-FLM-FYKS type use plastic injection and one type molding , so it has the advantage like firm structure ,.
good performance, non-toxic ,anti-corrosive ,easy to install ,low price , multi-point control for long-distance . For shen pump , fluctuation liquid or impurities liquid , it has good effect too . Generally liquid
can also be used . Standard cable length have 3m ,4m, 5m, 10m (and can customize according
to requests or customize it into PVC anti-corrosive material)
Feature:
Good design and strict produce technics.
Adopt stainless steel material ,high mechanical strength and good sealing .
Cable adopt special material, it have high oil ,acid ,alkali ,corrosion resistance .
The ON or OFF switch control signal is very reliable and stable ,without any error movement .
Easy to install, convenient to debug ,fast fluctuation shift, random to select the control range .
Main Parameter :
Rating current and voltage:10（8A）250V-10（4A）380V；
Rating power :1KW
Working temperature :-20℃-80℃；
Accuracy :±0.05m
Working pressure :1atm.
Medium :rinsing, sewage ,oil
Cable length: standard length can be 3m ,4m , 5m ,10m(can customize in other length)
CX-FLM-FYKS Cable float level switch with good quality and low price ,the level switch can
customize in spherical ,egg-shaped ,sphere-shaped and with different color of micro-switches
reed switches ,mercury switch contact .

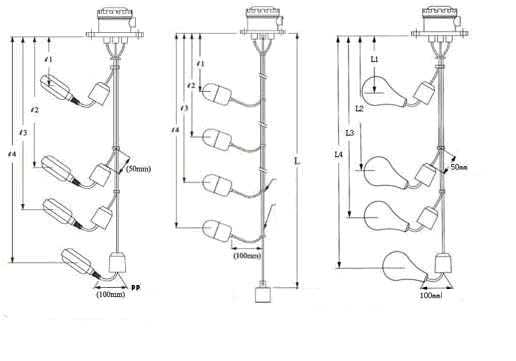

Diagram:
