CX-HUFM-TDS-100H handable ultrasonic flowmeter


Brief Introduction
1.Widely used to measure liquid flow in various industries
2.Smart body, high accuracy, good repeatability,long-running cell,easy operation,built-in printer etc.
3.Very popular in industry like petrochemical, water, power, energy monitoring etc. It’s
4.Exported to Japan, Korea, Australia, America etc.

Main Features
1.Accuracy：±1%
2.Repeatability：±0.2%
3.Easy to install outside the pipe
4.Four line display: Instantaneous flow rate,Accumulate flow,status
5.Standard interface RS232 for data output and on-line operation
6.Self-diagnose to show the current status
7.Built-in Nickel-hydrogen cell supports 10 hours of operation

Main Components

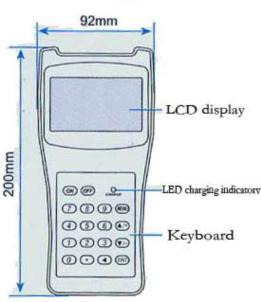

Outline Size

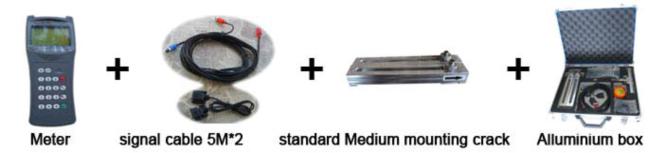

Standard Configuration

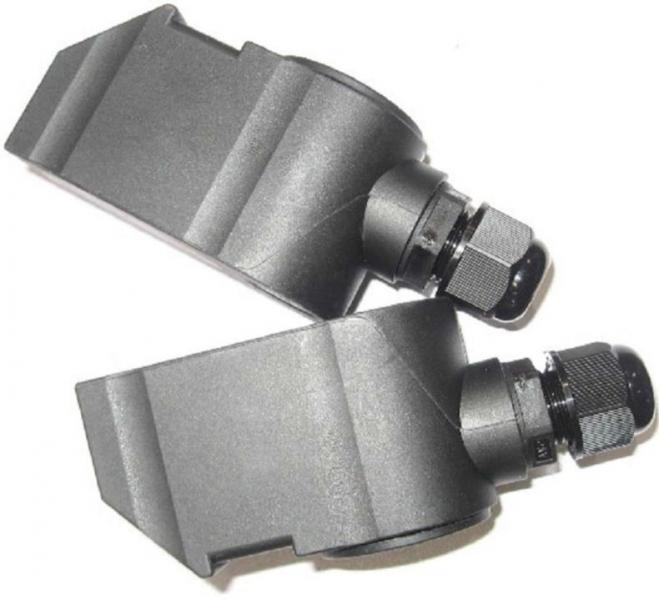

Sensors Optional
Rack for Small sensor S1Z  Rack for medium sensorM1Z     high-tem small S1H   high-tem medium sensor M1H


Small sensor s2  Medium sensor M2     Large sensor L2    high-tem small S1H    high-tem medium sensor M1H

 Technical Parameters

Sensor	S1Z	M1Z	S1	M1	L1	S1H	M1H
Pipe size(DN)	15-100	50-700	15-100	50-700	300-6000	15-100	50-700
Material	Material		ABS		Special material for H -temp
Frequency	1MHz
Installation	V（N/ W）	V/ Z	V（N/ W）	V/ Z	Z	V/（N W）	V/ Z
Calibration	Calibrated together with flowmeter
Magnetic	yes					no
Temperature	0-70					0-160
IP	IP65
Outline size	200*25*25	200*40*40	45*30*30	60*45*45	80*70*55	90*85*24	90*82*29
N.W. g/2pcs	250	1080	75	250	650	94	150
Medium	Water sea water sewage Alcohol oil etc
Turbidity≤	10000ppm with little air bubble
Pipe	Carbon steel stainless steel cast iron Brass PVC Aluminum etc.
Pipe liner	Rubber Slurry PP PS bakelite, PTFE
Signal cable	standard 5M *2 optional:10M* 2 or 15M* 2
