Type： CX-PTFM-XKF510 plastic turbine flowmeter
Illustrate： turbine flow meter is a kind of speed flow meter. It is widely used in measuring airproof pipe and continuous liquid flow. XKF510 apply to test liquid with low viscosity liquid, high precision, total and rate flow.
CX-PTFM-XKF510 plastic turbine flowmeter
Introduction:XKF510 series turbine flow meter is a kind of speed flow meter. It is widely used in measuring airproof pipe and continuous liquid flow. XKF510 apply to test liquid with low viscosity liquid, high precision, total and rate flow.
Technical Parameter:
PVDFImpeller
Accuracy:+/-1%
O-ring material: EPDM
Output: pulse output,4-20mA output, local total&rate flow display.
Power supply:24VDC or 220VAC,battery supply.
Main Feature:
| DN(mm) | Flow range | Male thread | Working | Medium temperature | A(mm) | B(mm) |
| (L/min) | Pressure | ℃ | ||||
| 10 | 1～10 | G3/8" | 1 | <=80℃ | 150 | 120 |
| 2～20 | ||||||
| 3～30 | G3/8" | |||||
| 15 | 2～20 | G1/2" | 150 | 130 | ||
| 5～50 | ||||||
| 7～70 | G1/2" | |||||
| 20 | 3～30 | G3/4" | 150 | 135 | ||
| 6～60 | ||||||
| 10～100 | G3/4" | |||||
| 25 | 7～70 | G1" | 0.8 | 150 | 150 | |
| 10～100 | ||||||
| 20～200 | G1" | |||||
| 40 | 15～150 | G1 1/2" | 160 | 180 | ||
| 25～250 | ||||||
| 40～400 | G1 1/2" | |||||
| 50 | 15～150 | G2" | 160 | 180 | ||
| 50～500 | G2" | |||||
| 70～700 | G2" |

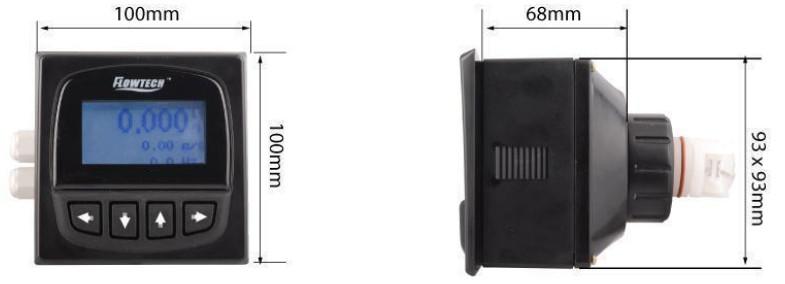

Panel Type Installation / Powered By Battery
| Feature of Inserted type | |||
| DN(mm) | Flow range | Working | Medium |
| (m3/h) | Pressure(Mpa) | temperature | |
| 50 | 3～30 | 0.8 | <=80℃ |
| 65 | 5～50 | ||
| 80 | 8～80 | ||
| 100 | 10～100 | ||
| 125 | 15～150 | ||
| 150 | 35～350 | ||
| 200 | 50～500 | ||
| 250 | 80～800 | ||
| 300 | 100～1000 | ||

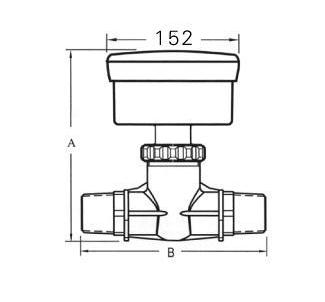

Outer Dimension

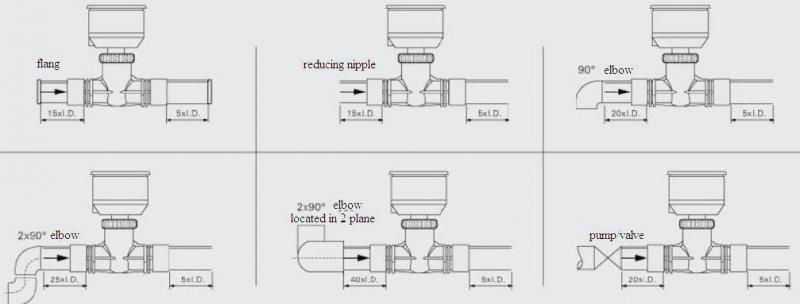

Installation
